FastLOAD® CX2000 Cobot

Freedom and Flexibility on Your Shop Floor

Are you ready for future growth? Expand capacity and reduce costs by investing In a FastLOAD® CX2000 cobot. You can take on more and varied projects without additional labor headaches.

If you’re faced with capacity challenges, labor shortages, or quality variability, FastLOAD standard cells from Acieta can help you address key business challenges, fast.

Is a Collaborative Robot (Cobot) the Right Fit for You?

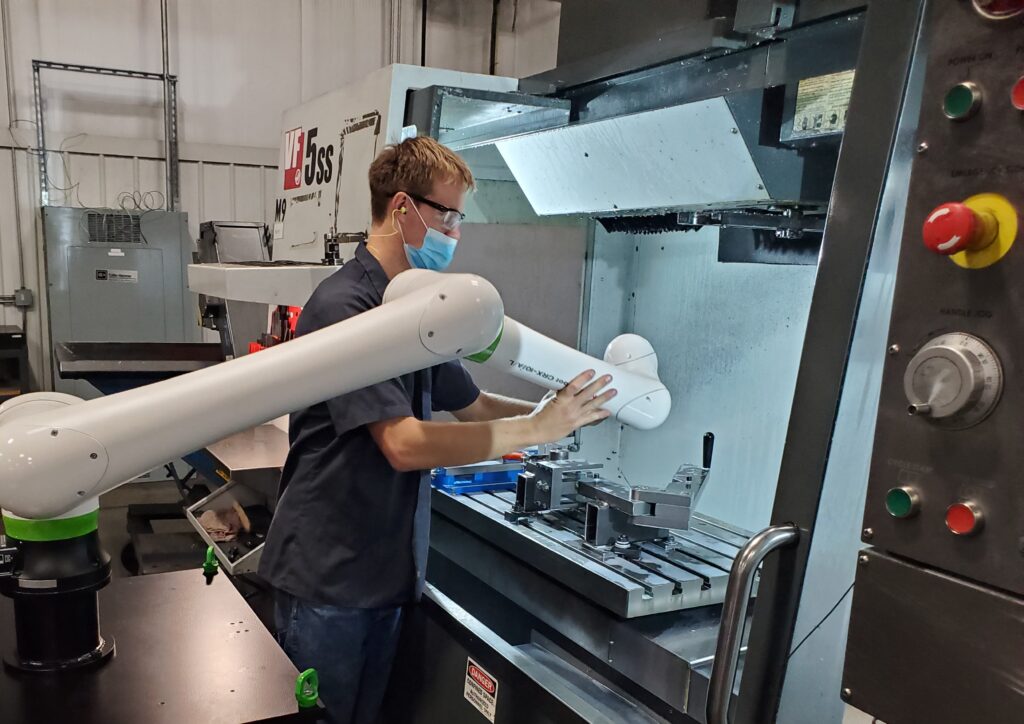

The FastLOAD CX2000 collaborative robotic cell can be quickly moved and set up at machines all around the shop in just minutes! Working safely alongside people, this collaborative robot could easily become everyone’s favorite coworker.

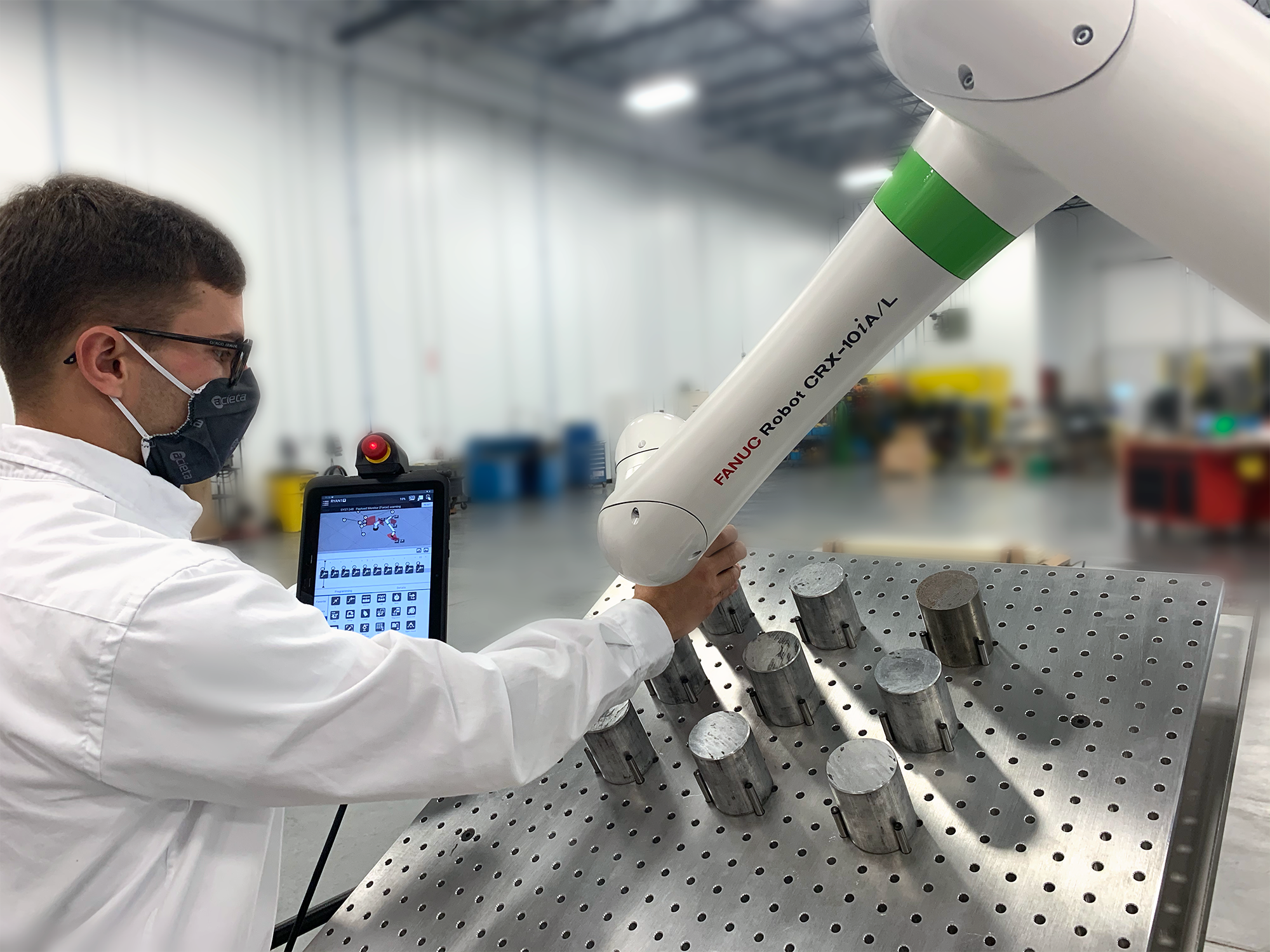

The FastLOAD CX2000 collaborative expandable cell is equipped with a FANUC 20kg, 120 VAC collaborative robotic arm and is mounted on a mobile platform that one worker can move easily. It can be outfitted with up to three modular carts to handle a wide variety of parts or allow more parts in the queue.

  • Fast delivery
  • Drag and drop programming
  • Never leave a machine idle
  • Twice the productivity
  • Lower costs, fast ROI
  • Saves space

FastLOAD CX2000 Features

Fast delivery

As a standard cobot, Acieta will deliver the FastLOAD CX2000 to you in as quickly as one week, so you can ramp-up fast and immediately increase capacity.

Drag and drop programming

An intuitive interface makes programming very easy. Setup is quick and easy.

Twice the productivity

The FastLOAD CX2000 can operate up to two different machines simultaneously for optimal throughput.

Lower costs, fast ROI

Automation increases capacity and lowers cost per part, so most shops see an ROI in 6 to 12 months*. (*Average ROI utilizing 2 shifts)

Never leave a machine idle

The FastLOAD CX2000 mobile cobot is cart mounted so it can be easily moved to different machines as needed and fitted with end-of-arm attachments to perform different tasks such as loading/unloading.

Saves space

The FastLOAD CX2000 expandable cobot cell has a small footprint and doesn’t require safety fencing, so it takes up, on average, 80% less floor space than a traditional robotic cell. And the wheels allow for easy mobility to anywhere in your facility.

FastLOAD CX2000 Specifications
Base Length838.3 mm (33 in)
Base Width844.8 mm (33.26 in)
System Weight213 kg (470 lbs)
Robot ModelFANUC CRX-20iA/L Collaborative 6 axis robot
Robot Reach1418 mm (55.83 in)
Max Part Width (2 Finger)158 mm (6.22 in)
Max Part Diameter (3 Finger)150 mm (5.91 in)
Gripper OptionsTwo finger gripper for square parts or three finger gripper for round parts
